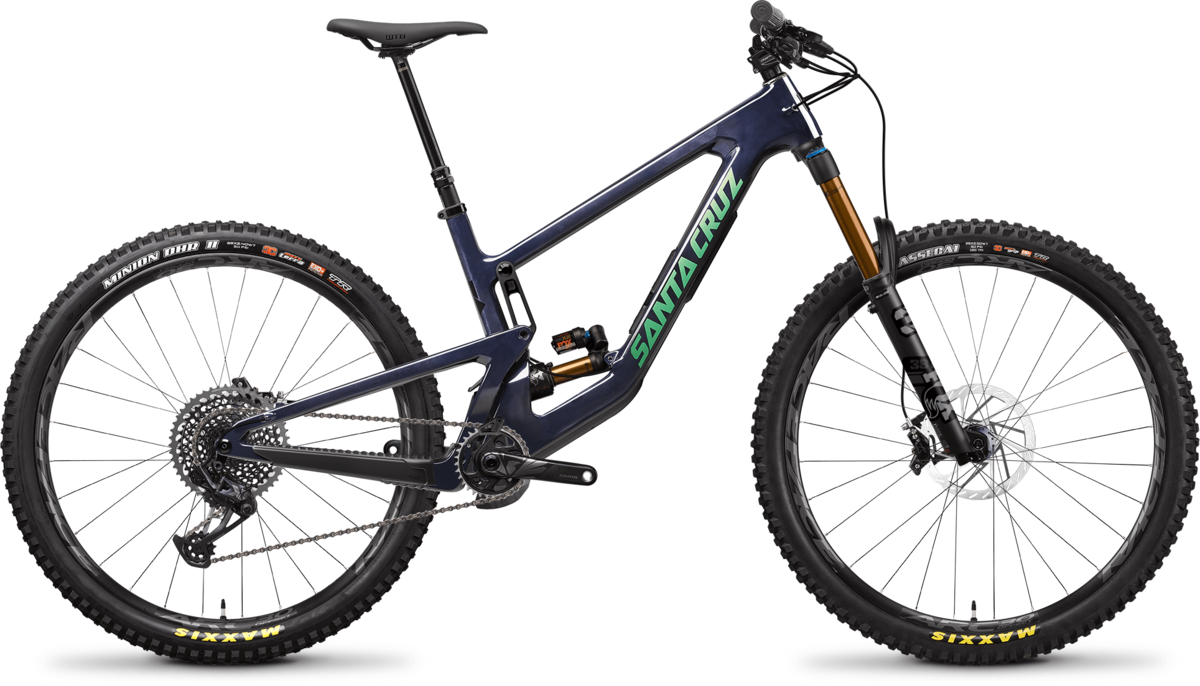

Santa Cruz Megatower 2 CC X01
$6,699.00
$8,949.00
Details
BIGGER. BADDER. BETTER. With big 29-inch wheels, a long reach, 165mm of rear Virtual Pivot Point (VPP) suspension paired with a 170mm-travel fork, the Megatower is one big, bad monster bike. Capable on gnarly downhill terrain, the Mega's also got a pedalable pedigree to get you back to the top.
High Setting
| Size | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| REACH (mm) | 430 | 455 | 475 | 495 | 520 |
| STACK (mm) | 616 | 625 | 638 | 656 | 670 |
| HT-ANGLE | 63.8 | 63.8 | 63.8 | 63.8 | 63.8 |
| HT-LENGTH (mm) | 90 | 100 | 115 | 135 | 150 |
| ST-ANGLE | 77.2 | 77.4 | 77.8 | 77.8 | 77.8 |
| ST-LENGTH (mm) | 380 | 405 | 430 | 460 | 500 |
| REAR-CENTER (mm) | 436 | 437 | 440 | 443 | 447 |
| FRONT-CENTER (mm) | 770 | 799 | 826 | 855 | 886 |
| BB-HEIGHT (mm) | 346 | 346 | 346 | 346 | 346 |
| BB-DROP (mm) | 27 | 27 | 27 | 27 | 27 |
| WHEELBASE (mm) | 1206 | 1236 | 1266 | 1298 | 1333 |
| TOPTUBE-LENGTH (mm) | 570 | 594 | 613 | 637 | 666 |
| STANDOVER (mm) | 709 | 716 | 723 | 722 | 724 |
Low Setting
| Size | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|
| REACH (mm) | 427 | 452 | 472 | 492 | 517 |
| STACK (mm) | 618 | 627 | 640 | 658 | 672 |
| HT-ANGLE | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| HT-LENGTH (mm) | 90 | 100 | 115 | 135 | 150 |
| ST-ANGLE | 77 | 77.2 | 77.5 | 77.5 | 77.5 |
| ST-LENGTH (mm) | 380 | 405 | 430 | 460 | 500 |
| REAR-CENTER (mm) | 437 | 438 | 441 | 444 | 448 |
| FRONT-CENTER (mm) | 770 | 799 | 826 | 855 | 886 |
| BB-HEIGHT (mm) | 343 | 343 | 343 | 343 | 343 |
| BB-DROP (mm) | 30 | 30 | 30 | 30 | 30 |
| WHEELBASE(mm) | 1206 | 1237 | 1266 | 1298 | 1334 |
| TOPTUBE-LENGTH (mm) | 570 | 595 | 613 | 638 | 667 |
| STANDOVER (mm) | 705 | 712 | 718 | 717 | 720 |
Specs
| Frame | Carbon CC 29" 165mm Travel VPP™ |
|---|---|
| Fork | FOX 38 Float Factory, 170mm |
| Rear Shock | FOX Float X2 Factory 2-Position lever 230x62.5 |
| Rims | RaceFace ARC Offset 30 29" Rims |
| Hubs |
Front: Industry Nine 1/1, 110x15, 6 Bolt, 28h Rear: Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h |
| Spokes | Sapim Race |
| Tires |
Front: Maxxis Assegai 29"x2.5" EXO+, 3C MaxxGrip Rear: Maxxis Minion DHR II 29"x2.4" EXO+, 3C MaxxTerra |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Crankset | SRAM X1 Eagle 148 DUB 30t |
| Shifters | SRAM X01 Eagle, 12spd |
| Rear Derailleur | SRAM X01 Eagle, 12spd |
| Cassette/Freewheel | SRAM XG1295 Eagle, 12spd, 10-50t |
| Chain | SRAM X01 Eagle, 12spd |
| Brakes | SRAM Code RSC |
| Rotors | SRAM HS2 Rotor 200mm |
| Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
| Tape/Grips | Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnar |
| Stem | Burgtec Enduro MK3 42mm |
| Headset | Cane Creek 40 IS Integrated Headset |
| Seatpost | RockShox Reverb Stealth, 31.6 or OneUp Dropper V2 |
| Saddle | WTB Silverado Team Saddle or WTB Volt |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Trans Blue / Medium | 192219217147 | 58-22264-157-3-760-857301 | 210000135157 |
