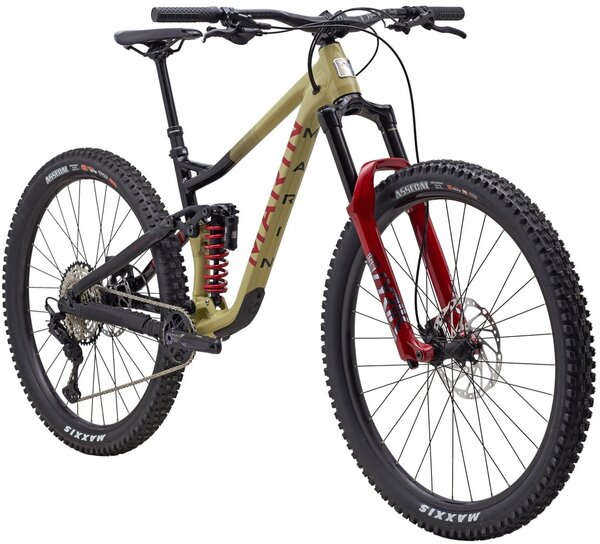

Marin Alpine Trail XR
Details
Big mountains, epic passes, and all-day ripping descents. If you live for the alpine adventure and gravity-fueled downhills, look no further than the Alpine Trail series. Updated for 2021, the Alpine Trail is built around the longest travel version of our critically acclaimed MultiTrac platform with progressive slack headtube/steep seattube geometry, low-slung aluminum frames, and 29" wheels. The Alpine Trail is here to conquer all singletrack in its path.
Series 4 Aluminum Frame
Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.
One Piece Forged Rocker
The heart of the Alpine Trail’s MultiTrac suspension is the forged one-piece rocker link. The strength and stiffness of the rocker keeps
the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.
Bridgeless Seatstay
The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while
at the same time allowing for maximum tire clearance and short chainstays.
Modern Angles
The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.
- Series 4 Aluminum Frame
- RockShox Lyric Ultimate 160mm fork
- Rock Shox Super Deluxe Coil Ultimate RCT shock
- Shimano SLX 1x12 drivetrain
- X-Fusion Manic dropper post
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
Specs
| Frame | Series 4 6061 Aluminum Frame, 29" Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 73mm Threaded BB w/ISCG05 Tabs |
|---|---|
| Fork | RockShox Lyric Ultimate, 29", 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, Maxle Stealth, 42mm Offset |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
| Rear Shock | Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 300lb, L/XL = 400lb) |
| Axles |
Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle |
| Rims/Wheels | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Hubs |
Front: Shimano HF-MT410B, Centerlock Rear: Shimano HB-MT510B, Centerlock, Microspline Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Tires |
Front: Maxxis Assegai 29x2.5", MAXX TERRA, EXO+, Tubeless Compatible Rear: Maxxis Assegai 29x2.5", MAXX GRIP, DoubleDown, Tubeless Compatible |
| Crankset | FSA Gradient, Modular 1x, Mego EXO Spindle, Boost Spacing |
| Chainrings | 32T Direct Mount Chainring, MegaTooth Technology |
| Bottom Bracket | BB392 EVO, 73mm BSA Threaded |
| Chain | KMC X-12 Silver and Black |
| Rear Derailleur | Shimano XT 12-Speed, SGS |
| Cassette/Rear Cogs | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Shifters | Shimano SLX 12-Speed, I-Spec EV |
| Handlebars | Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width |
| Tape/Grips | Marin Single Clamp Locking |
| Stem | Deity Copperhead 35mm, Black Ano |
| Brake Levers | Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible |
| Brakes | Shimano MT420, 4-Piston Hydraulic Disc Brake, 203/180mm Rotor |
| Saddle | Marin Speed Concept |
| Seat Post | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
| Accessories & Extras | Bolt-On Thru-Axle |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Tan/Black/Red / Medium | 843346107299 | 732404002 | 210000134416 |
| Tan/Black/Red / Large | 843346107305 | 732404003 | 210000134415 |
